Solar Swimming Pool Pump
Solar Pool Pumps
Solar Swimming Pool Pump
Series: SSP · R-SSPSolar-powered pool circulation and filtration pumps — keep pool water clear all day at zero running cost.
Key features
- High-flow pool circulation & filtration
- 2″ – 2.5″ unions
- Zero grid running cost
- AC/DC backup option
Typical specifications
| Model / Series | SSP · R-SSP |
|---|---|
| Models | 5 models |
| Power | 370 – 1200 W |
| Max head | up to 19 m |
| Max flow | up to 31 m³/h |
| Outlet | 2″ – 2.5″ |
| Panel input | DC 24 – 110 V |
Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.
Product Details
What the SSP · R-SSP Offers
Typical Applications
- Swimming pool circulation & filtration
- Hotel, lodge & commercial pools
- Water features
- Zero-running-cost filtration
Advantages & Protection
- MPPT — Maximum Power Point Tracking
- RMS — Remote Monitoring System (optional)
- Adjustable pump speed
- Dry-run protection
- Over- / under-voltage protection
- Over- / under-current protection
- Over-temperature protection (max 88°C)
- Reverse-polarity / reverse-wiring protection
- Soft start & soft stop
- LCD display of all live data
- Automatic stop / restart on water level
- Wireless water-level detector option (up to 3 km)
Build & Materials
Cast or 304 stainless-steel pump body with brass or stainless impeller, 100% copper windings and a thermally-protected brushless DC motor. Supplied with cable connector and check valve.
Technical Data
Full Model Range — SSP · R-SSP
Complete series specifications and matched solar array.
| Model | Volt (V) | Power (W) | Max Flow | Max Head | Max Suction | Inlet / Outlet | Recommended Solar Panel |
|---|---|---|---|---|---|---|---|
| SSP6/9-D24/270 | 24 | 400 | 9m³/h | 6m | 5m | 2"X2" | 1 × 400 W · 36 V |
| SSP10/10-D48/370 | 48 | 370 | 10m³/h | 10m | 5m | 2"X2" | 1 × 550 W · 41 V |
| SSP17/15-D48/500 | 48 | 500 | 17m³/h | 15m | 5m | 2"X2" | 2 × 400 W · 36 V |
| SSP21/19-D72/900 | 72 | 900 | 21m³/h | 19m | 5m | 2"X2" | 3 × 450 W · 41 V |
| SSP31/19-D110/1200 | 110 | 1200 | 31m³/h | 19m | 5m | 2.5"X2.5" | 3 × 550 W · 41 V |
Recommended solar panel is the minimum array (input solar power > pump rated power × 1.3). Exact specifications confirmed on quotation.

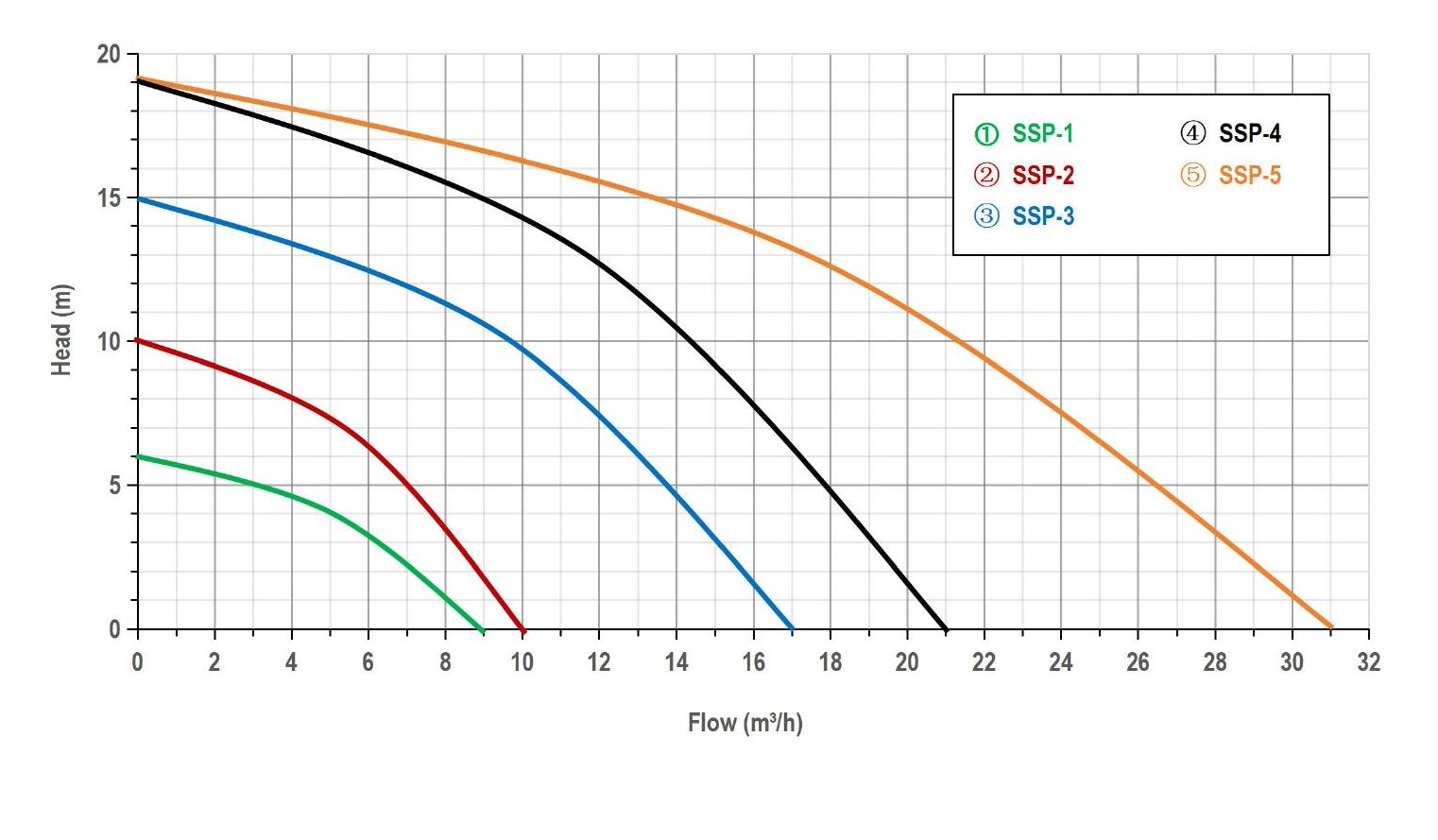

Performance Curve
