2" Centrifugal Solar Pump

Submersible Solar Pumps

2" Centrifugal Solar Pump

Series: 2SPC

A 2-inch multistage centrifugal pump delivering strong head from slim boreholes for homes and small farms.

Key features

Multistage centrifugal — balanced flow & head
Stainless-steel motor shaft
Oil-filled, pressure-balanced motor
Wide model range; 3-year warranty

Typical specifications

Model / Series	2SPC
Models	6 models
Power	250 – 1300 W
Max head	up to 165 m
Max flow	up to 2.8 m³/h
Outlet	0.5″
Panel input	DC 24 – 110 V

Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.

Request a Quote Call 012 333 8722

Product Details

What the 2SPC Offers

Typical Applications

Household & village drinking water
Livestock & game watering
Agriculture & drip irrigation
Fountains & garden watering
Remote & off-grid water supply

Advantages & Protection

MPPT — Maximum Power Point Tracking
RMS — Remote Monitoring System (optional)
Adjustable pump speed
Dry-run protection
Over- / under-voltage protection
Over- / under-current protection
Over-temperature protection (max 88°C)
Reverse-polarity / reverse-wiring protection
Soft start & soft stop
LCD display of all live data
Automatic stop / restart on water level
Wireless water-level detector option (up to 3 km)

Build & Materials

Motor windings	100% copper
Impellers	AISI 304 stainless steel
Silicon steel	Cold-rolled
Pump body & shaft	AISI 304 stainless steel
Bearings	C&U / NSK
Outlet	AISI 304 stainless steel
Mechanical seal	NBR
Seal lubricant	Food-grade oil

Motor: Maintenance-free brushless DC (BLDC) motor with integrated DSP & MPPT, dry-running protection, battery operation with low-voltage disconnect, and overload / high-temperature protection.

Free accessories: water-level sensors, cable connector and ropes.

Technical Data

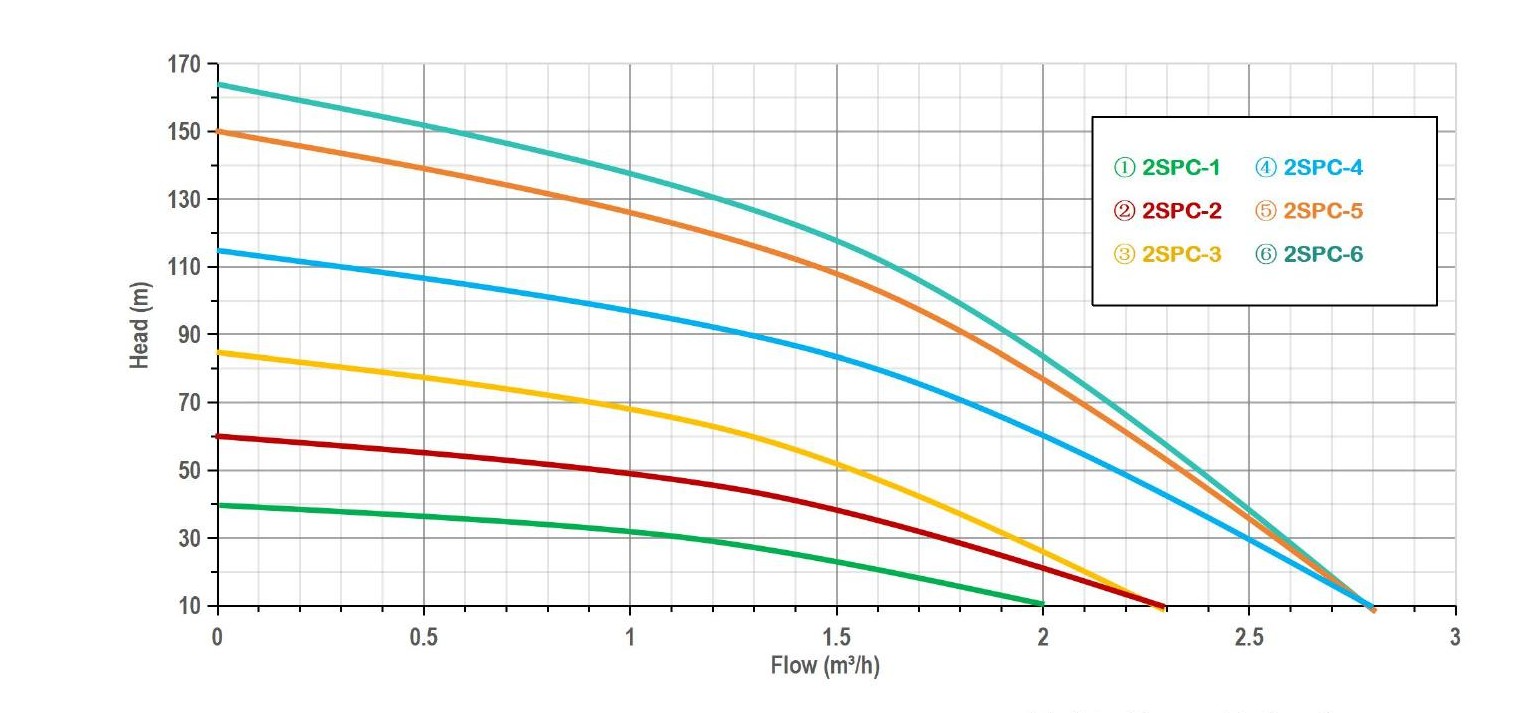

Full Model Range — 2SPC

Complete series specifications and matched solar array.

Model	Volt (V)	Power (W)	Power (HP)	Max Flow	Max Head	Outlet	Recommended Solar Panel
2SPC2/40-D24/250	24	250	0.35	2.0m³/h	40m	0.5"	1 × 350 W · 36 V
2SPC2.3/60-D48/370	48	370	0.5	2.3m³/h	60m	0.5"	1 × 400 W · 36 V
2SPC2.3/85-D48/550	48	550	0.75	2.3m³/h	85m	0.5"	2 × 400 W · 36 V
2SPC2.8/115-D72/750	72	750	1	2.8m³/h	115m	0.5"	2 × 550 W · 41 V
2SPC2.8/150-D110/1100	110	1100	1.5	2.8m³/h	150m	0.5"	3 × 500 W · 41 V
2SPC2.8/165-D110/1300	110	1300	2	2.8m³/h	165m	0.5"	3 × 550 W · 41 V
