4" Helical Rotor Solar Pump
4" Helical Rotor Solar Pump
Series: 4SPS · RN4SA 4-inch helical-rotor pump offering higher flow than the 3-inch range while keeping strong head.
Key features
- Helical rotor — high head, steady low flow
- Stainless-steel construction
- Dry-run & full electronic protection
- Matched WIKKIES MPPT controller
Typical specifications
| Model / Series | 4SPS · RN4S |
|---|---|
| Models | 4 models |
| Power | 500 – 1300 W |
| Max head | up to 120 m |
| Max flow | up to 4.5 m³/h |
| Outlet | 1″ |
| Panel input | DC 48 – 110 V |
Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.
What the 4SPS · RN4S Offers
Typical Applications
- Household & village drinking water
- Livestock & game watering
- Agriculture & drip irrigation
- Fountains & garden watering
- Remote & off-grid water supply
Advantages & Protection
- MPPT — Maximum Power Point Tracking
- RMS — Remote Monitoring System (optional)
- Adjustable pump speed
- Dry-run protection
- Over- / under-voltage protection
- Over- / under-current protection
- Over-temperature protection (max 88°C)
- Reverse-polarity / reverse-wiring protection
- Soft start & soft stop
- LCD display of all live data
- Automatic stop / restart on water level
- Wireless water-level detector option (up to 3 km)
Build & Materials
| Motor windings | 100% copper |
|---|---|
| Helical rotor | AISI 304 stainless steel |
| Silicon steel | Cold-rolled |
| Pump body & shaft | AISI 304 stainless steel |
| Bearings | C&U / NSK |
| Outlet | AISI 304 stainless steel |
| Mechanical seal | NBR |
| Seal lubricant | Food-grade oil |
Motor: Maintenance-free brushless DC (BLDC) motor with integrated DSP & MPPT, dry-running protection, battery operation with low-voltage disconnect, and overload / high-temperature protection.
Free accessories: water-level sensors, cable connector, spared rotor and ropes.

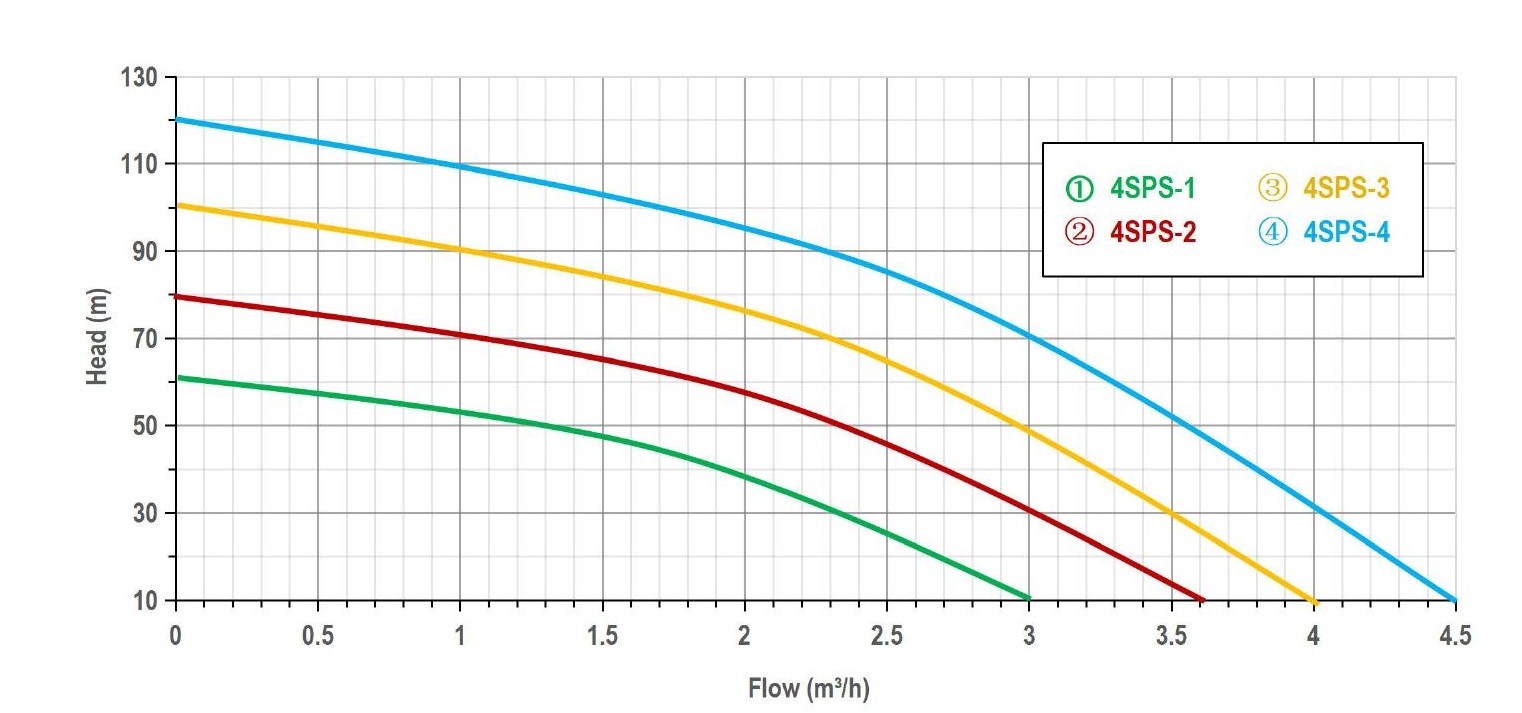

Full Model Range — 4SPS · RN4S
Complete series specifications and matched solar array.
| Model | Volt (V) | Power (W) | Power (HP) | Max Flow | Max Head | Outlet | Recommended Solar Panel |
|---|---|---|---|---|---|---|---|
| 4SPS3/60-D48/500 | 48 | 500 | 0.75 | 3m³/h | 60m | 1" | 2 × 400 W · 36 V |
| 4SPS3.6/80-D72/750 | 72 | 750 | 1.00 | 3.6m³/h | 80m | 1" | 2 × 550 W · 41 V |
| 4SPS4/100-D110/1000 | 110 | 1000 | 1.50 | 4m³/h | 100m | 1" | 3 × 500 W · 41 V |
| 4SPS4.5/120-D110/1300 | 110 | 1300 | 2.00 | 4.5m³/h | 120m | 1" | 3 × 550 W · 41 V |
Recommended solar panel is the minimum array (input solar power > pump rated power × 1.3). Exact specifications confirmed on quotation.
