Centrifugal Surface Pump
Surface Solar Pumps
Centrifugal Surface Pump
Series: JCPM · R-SCPMHigh-flow centrifugal surface pumps that abstract from rivers, canals and dams to feed large irrigation systems.
Key features
- High-volume centrifugal hydraulics
- 1″ – 4″ inlet/outlet range
- Ideal for canals, rivers & dams
- Large-flow irrigation ready
Typical specifications
| Model / Series | JCPM · R-SCPM |
|---|---|
| Models | 10 models |
| Power | 250 – 3000 W |
| Max head | up to 42 m |
| Max flow | up to 60 m³/h |
| Outlet | 1″ – 3″ |
| Panel input | DC 24 – 288 V |
Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.
Product Details
What the JCPM · R-SCPM Offers
Typical Applications
- Water transfer from rivers, dams & tanks
- Pressure boosting
- Garden & field irrigation
- Household & farm water supply
Advantages & Protection
- MPPT — Maximum Power Point Tracking
- RMS — Remote Monitoring System (optional)
- Adjustable pump speed
- Dry-run protection
- Over- / under-voltage protection
- Over- / under-current protection
- Over-temperature protection (max 88°C)
- Reverse-polarity / reverse-wiring protection
- Soft start & soft stop
- LCD display of all live data
- Automatic stop / restart on water level
- Wireless water-level detector option (up to 3 km)
Build & Materials
Cast or 304 stainless-steel pump body with brass or stainless impeller, 100% copper windings and a thermally-protected brushless DC motor. Supplied with cable connector and check valve.
Technical Data
Full Model Range — JCPM · R-SCPM
Complete series specifications and matched solar array.
| Model | Volt (V) | Power (W) | Max Flow | Max Head | Max Suction | Inlet / Outlet | Recommended Solar Panel |
|---|---|---|---|---|---|---|---|
| JCPM4-17-D24/250 | 24 | 250 | 4 m³/h | 17m | 8m | 1"X1" | 1 × 400 W · 36 V |
| JCPM5-25-D48/370 | 48 | 370 | 5m³/h | 25m | 8m | 1"X1" | 1 × 550 W · 41 V |
| JCPM6-28-D48/550 | 48 | 550 | 6m³/h | 28m | 8m | 1"X1" | 2 × 400 W · 36 V |
| JCPM7-35-D72/750 | 72 | 750 | 7m³/h | 35m | 8m | 1"X1" | 2 × 550 W · 41 V |
| JCPM7-42-D110/1100 | 110 | 1100 | 7m³/h | 42m | 8m | 1"X1" | 3 × 550 W · 41 V |
| JCPM21-16-D72/750 | 72 | 750 | 21m³/h | 16m | 8m | 2"X2" | 2 × 550 W · 41 V |
| JCPM26-16-D110/1100 | 110 | 1100 | 26m³/h | 16m | 8m | 2"X2" | 3 × 550 W · 41 V |
| JCPM26-19-D196/1500 | 196 | 1500 | 26m³/h | 19m | 8m | 2"X2" | 4 × 500 W · 41 V |
| JCMP52-16-D252/2200 | 252 | 2200 | 52m³/h | 16m | 8m | 3"X3" | 6 × 500 W · 41 V |
| JCPM60-16-D288/3000 | 288 | 3000 | 60m³/h | 16m | 8m | 4"X4" | 8 × 500 W · 41 V |
Recommended solar panel is the minimum array (input solar power > pump rated power × 1.3). Exact specifications confirmed on quotation.

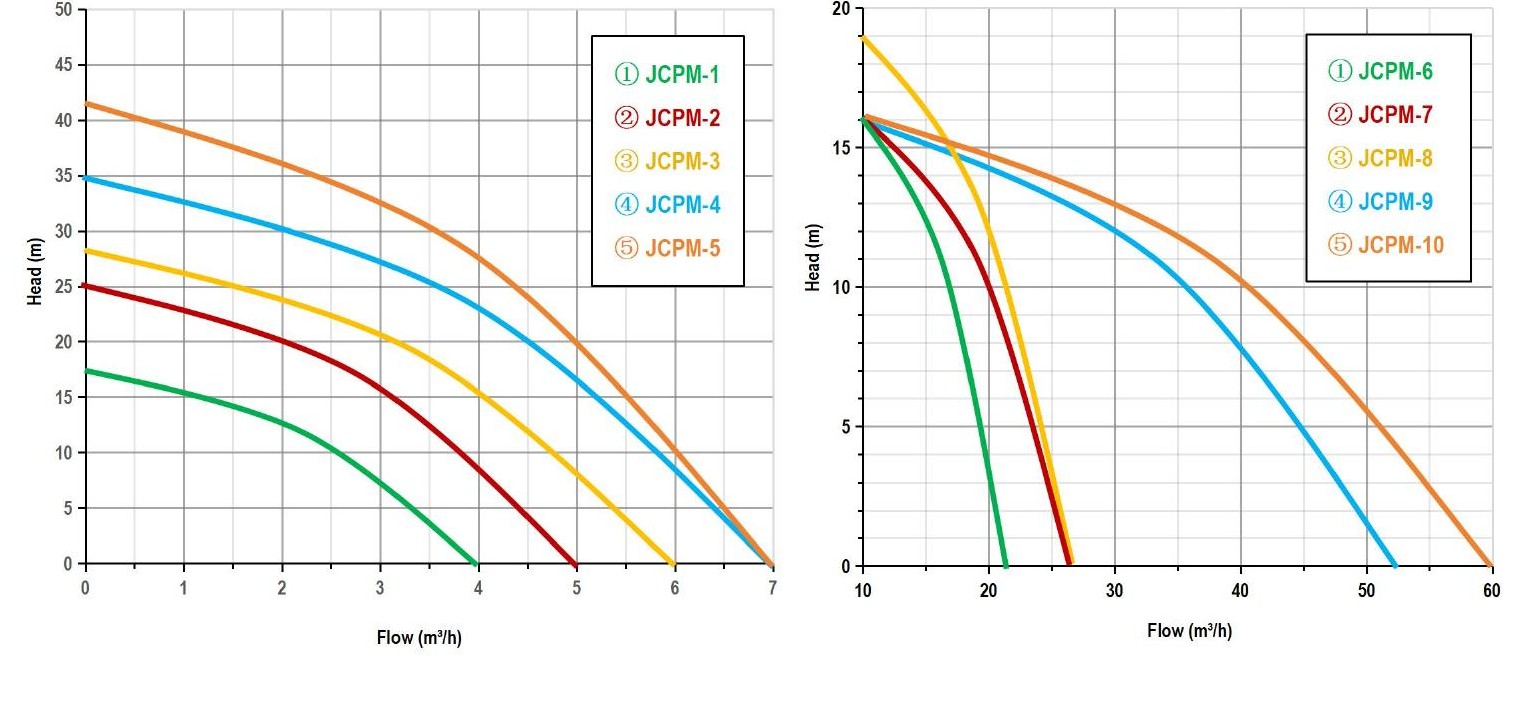

Performance Curve
