Solar Jet Surface Pump

Surface Solar Pumps

Solar Jet Surface Pump

Series: SJET

A self-priming jet pump ideal for shallow wells and tanks, delivering steady household water pressure.

Key features

Self-priming jet design
Great for shallow wells & tanks
Stable household pressure
MPPT controlled

Typical specifications

Model / Series	SJET
Models	5 models
Power	250 – 1100 W
Max head	up to 55 m
Max flow	up to 4.5 m³/h
Outlet	1″ × 1″
Panel input	DC 24 – 110 V

Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.

Request a Quote Call 012 333 8722

Product Details

What the SJET Offers

Typical Applications

Water transfer from rivers, dams & tanks
Pressure boosting
Garden & field irrigation
Household & farm water supply

Advantages & Protection

MPPT — Maximum Power Point Tracking
RMS — Remote Monitoring System (optional)
Adjustable pump speed
Dry-run protection
Over- / under-voltage protection
Over- / under-current protection
Over-temperature protection (max 88°C)
Reverse-polarity / reverse-wiring protection
Soft start & soft stop
LCD display of all live data
Automatic stop / restart on water level
Wireless water-level detector option (up to 3 km)

Build & Materials

Cast or 304 stainless-steel pump body with brass or stainless impeller, 100% copper windings and a thermally-protected brushless DC motor. Supplied with cable connector and check valve.

Technical Data

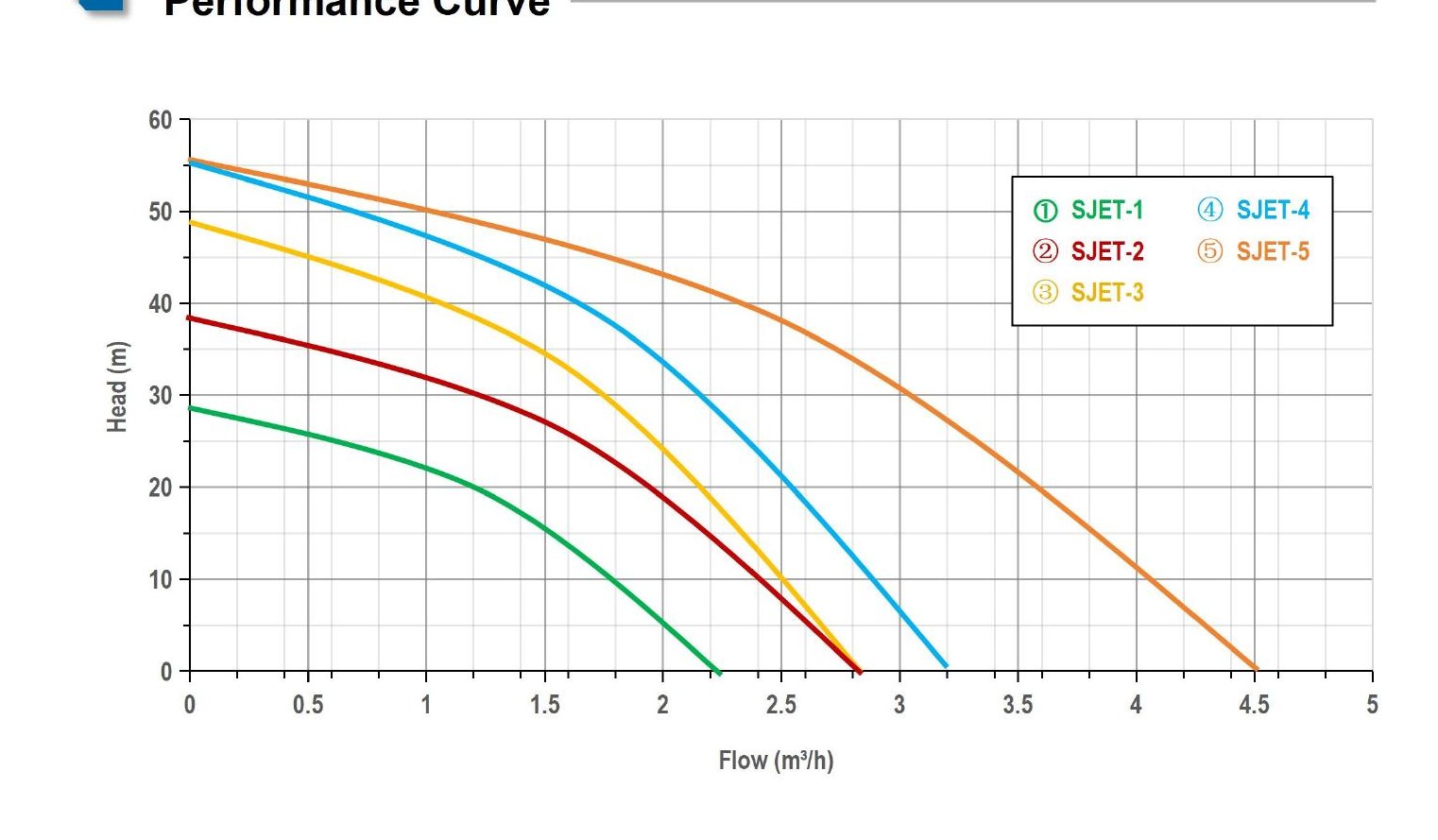

Full Model Range — SJET

Complete series specifications and matched solar array.

Model	Volt (V)	Power (W)	Max Flow	Max Head	Max Suction	Inlet / Outlet	Recommended Solar Panel
SJETS2.3/28-D24/250	24	250	2.3m³/h	28m	8m	1’	1 × 400 W · 36 V
SJETS2.7/38-D48/370	48	370	2.7m³/h	38m	8m	1’	1 × 550 W · 41 V
SJETS2.7/48-D48/550	48	550	2.7m³/h	48m	8m	1	2 × 400 W · 36 V
SJETS3.2/55-D72/750	72	750	3.2m³/h	55m	8m	1’	2 × 550 W · 41 V
SJETS4.5/55-D110/1100	110	1100	4.5m³/h	55m	8m	1’	3 × 550 W · 41 V
