Self-Priming Garden Pump
Surface Solar Pumps
Self-Priming Garden Pump
Series: RSGJA high-flow self-priming surface pump for garden and field irrigation, moving big volumes on solar power.
Key features
- Self-priming, high flow
- Robust cast body
- Ideal for garden & field irrigation
- MPPT controlled
Typical specifications
| Model / Series | RSGJ |
|---|---|
| Models | 6 models |
| Power | 600 – 2200 W |
| Max head | up to 40 m |
| Max flow | up to 55 m³/h |
| Outlet | 1″ – 3″ |
| Panel input | DC 72 – 280 V |
Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.
Product Details
What the RSGJ Offers
Typical Applications
- Water transfer from rivers, dams & tanks
- Pressure boosting
- Garden & field irrigation
- Household & farm water supply
Advantages & Protection
- MPPT — Maximum Power Point Tracking
- RMS — Remote Monitoring System (optional)
- Adjustable pump speed
- Dry-run protection
- Over- / under-voltage protection
- Over- / under-current protection
- Over-temperature protection (max 88°C)
- Reverse-polarity / reverse-wiring protection
- Soft start & soft stop
- LCD display of all live data
- Automatic stop / restart on water level
- Wireless water-level detector option (up to 3 km)
Build & Materials
Cast or 304 stainless-steel pump body with brass or stainless impeller, 100% copper windings and a thermally-protected brushless DC motor. Supplied with cable connector and check valve.
Technical Data
Full Model Range — RSGJ
Complete series specifications and matched solar array.
| Model | Volt (V) | Power (W) | Max Flow | Max Head | Max Suction | Inlet / Outlet | Recommended Solar Panel |
|---|---|---|---|---|---|---|---|
| RSGJ-3.1/35-D72/600 | 72 | 600 | 3.1m³/h | 35m | 8m | 1"X1" | 2 × 450 W · 41 V |
| RSGJ-3.1/40-D72/750 | 96 | 750 | 3.1m³/h | 40m | 8m | 1"X1" | 2 × 550 W · 41 V |
| RSGJ-17/14-D110/1100 | 144 | 1100 | 17m³/h | 14m | 8m | 2"X2" | 3 × 550 W · 41 V |
| RSGJ-35/20-D196/1500 | 192 | 1500 | 35m³/h | 20m | 8m | 3"X3" | 4 × 500 W · 41 V |
| RSGJ-45/20-D252/1800 | 280 | 1800 | 45m³/h | 20m | 8m | 3"X3" | 4 × 550 W · 41 V |
| RSGJ-55/20-D252/2200 | 280 | 2200 | 55m³/h | 20m | 8m | 4"X4" | 6 × 500 W · 41 V |
Recommended solar panel is the minimum array (input solar power > pump rated power × 1.3). Exact specifications confirmed on quotation.

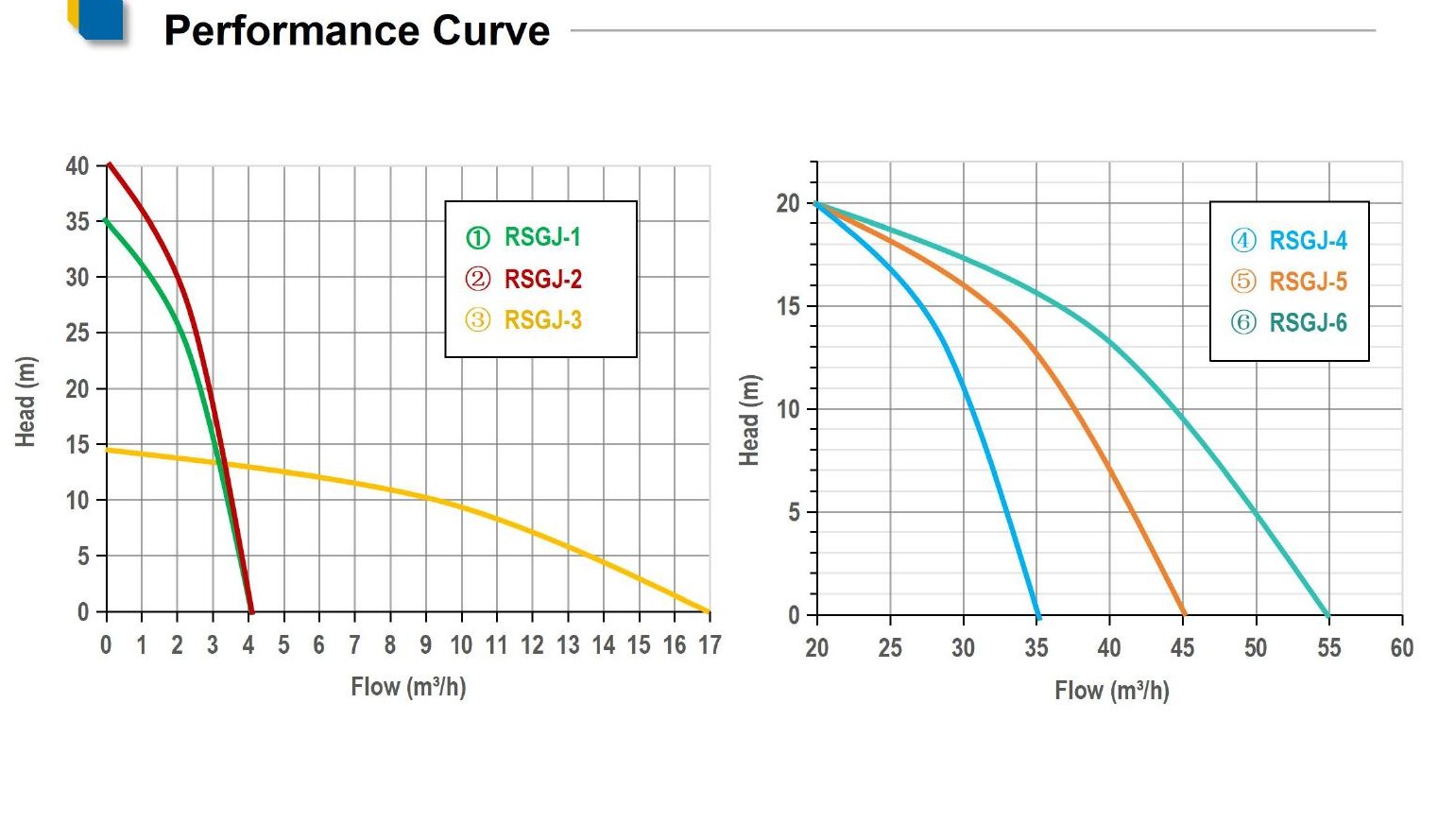

Performance Curve
