Stainless Steel Surface Pump
Surface Solar Pumps
Stainless Steel Surface Pump
Series: SCPW-SSStainless-steel surface centrifugal pumps for clean-water transfer and boosting where hygiene matters.
Key features
- 304 stainless construction
- Clean, hygienic water transfer
- Strong head-to-flow balance
- Full electronic protection
Typical specifications
| Model / Series | SCPW-SS |
|---|---|
| Models | 7 models |
| Power | 500 – 3000 W |
| Max head | up to 116 m |
| Max flow | up to 23 m³/h |
| Outlet | 1″ – 2″ |
| Panel input | DC 48 – 288 V |
Specifications are representative ranges. Exact model specifications are confirmed on quotation to suit your site.
Product Details
What the SCPW-SS Offers
Typical Applications
- Water transfer from rivers, dams & tanks
- Pressure boosting
- Garden & field irrigation
- Household & farm water supply
Advantages & Protection
- MPPT — Maximum Power Point Tracking
- RMS — Remote Monitoring System (optional)
- Adjustable pump speed
- Dry-run protection
- Over- / under-voltage protection
- Over- / under-current protection
- Over-temperature protection (max 88°C)
- Reverse-polarity / reverse-wiring protection
- Soft start & soft stop
- LCD display of all live data
- Automatic stop / restart on water level
- Wireless water-level detector option (up to 3 km)
Build & Materials
Cast or 304 stainless-steel pump body with brass or stainless impeller, 100% copper windings and a thermally-protected brushless DC motor. Supplied with cable connector and check valve.
Technical Data
Full Model Range — SCPW-SS
Complete series specifications and matched solar array.
| Model | Volt (V) | Power (W) | Max Flow | Max Head | Max Suction | Inlet / Outlet | Recommended Solar Panel |
|---|---|---|---|---|---|---|---|
| SCPW5/38-D48/500 | 48 | 500 | 5m³/h | 38m | 8m | 1"X1" | 2 × 400 W · 36 V |
| SCPW5/83-D72/750 | 72 | 750 | 5m³/h | 83m | 8m | 1"X1" | 2 × 550 W · 41 V |
| SCPW8/70-D110/1000 | 110 | 1000 | 8m³/h | 70m | 8m | 1"X1" | 3 × 550 W · 41 V |
| SCPW7/116-D252/2200 | 252 | 2200 | 7m³/h | 116m | 8m | 1"X1" | 6 × 500 W · 41 V |
| SCPW23/42-D196/1800 | 252 | 1800 | 23m³/h | 42m | 8m | 2"X2" | 5 × 500 W · 41 V |
| SCPW23/60-D252/2200 | 288 | 2200 | 23m³/h | 60m | 8m | 2"X2" | 6 × 500 W · 41 V |
| SCPW23/90-D288/3000 | 288 | 3000 | 23m³/h | 90m | 8m | 2"X2" | 8 × 500 W · 41 V |
Recommended solar panel is the minimum array (input solar power > pump rated power × 1.3). Exact specifications confirmed on quotation.

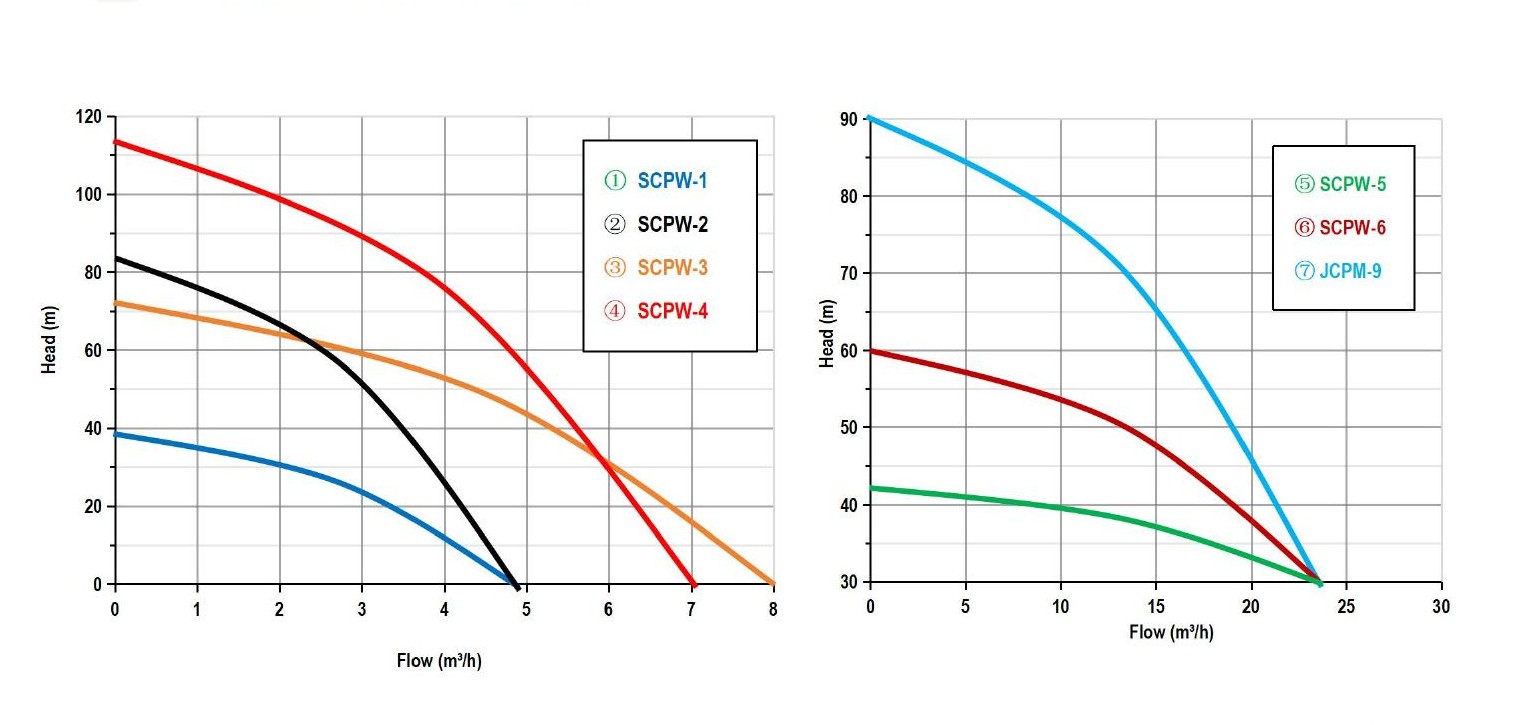

Performance Curve
